Valvola Unique Mixproof per fondo serbatoio

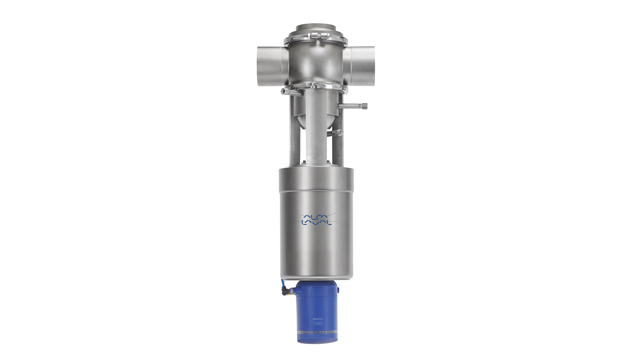

Same basic advantages as the unique mixproof valves but specially designed for mounting directly on the tank wall at the inlets and outlets. For tank inlet and outlet applications, the Unique mixproof tank outlet (TO) valve offers full drainability and provides cleanability all the way up to the tank without any risk of cross-contamination.
Cost effective tank outlet mixproof valve
Alfa Laval Unique Mixproof TO valves feature two independent plugs. It is the choice for hygienic installations enabling safe filling or emptying of tanks.
Exceptional spillage-free operation
A state-of-the-art double-seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.
Easy valve to maintain and clean
Unique mixproof valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals. Unique mixproof valves meet most hygienic standards and can be supplied with the optional SpiralClean cleaning system.
Click on the playlist to see all 4 animations!
You get the full benefit of using Unique mixproof valves by combining them with Alfa Laval ThinkTop and ThinkTop Basic valve sensing and control units.
Valve clusters - customized flow solutions
We are specialists in providing pre-built valve clusters customized to meet specific, individual requirements.
Our expertise helps ensure you the most efficient flow management, using as few components as possible and dealing effectively with key issues that include thermal cycling, cleanability, drainability and flow control.
Alfa Laval valve clusters can be supplied pre-assembled and pre-tested as well as fully wired and with all the necessary pneumatic tubing, junction boxes and control panels pre-connected.
This means you can bring even complex installations online as quickly as possible, saving time and avoiding lost revenue associated with on-site troubleshooting and downtime.
For more information, please refer to Documentation and to the Selection Guide.
For cost-effective alternatives to the Unique mixproof valve range, Alfa Laval also offers standard SMP mixproof valves.
Product benefits
- Cost effective
- Safe and hygienic operation
- Easy to maintain and clean
Catalogo prodotti
Come funziona:

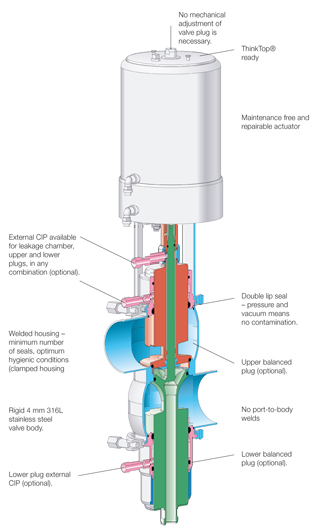

Costruzione
La valvola Unique Mixproof si basa su una serie di componenti di base, tra cui corpo valvola, otturatore della valvola, attuatore e opzioni di pulizia e accessori che supportano un'ampia gamma di applicazioni. Usando questi componenti, è possibile costruire una valvola Unique Mixproof per soddisfare i propri specifici requisiti di processo.
Per agevolare la manutenzione, la valvola Unique Mixproof è dotata di fori di rilevamento delle perdite che consentono di rilevare in anticipo l'usura o il danneggiamento degli o-ring statici. Gli operatori possono ispezionare visivamente la valvola in qualsiasi momento senza doverla smontare.
Principio di funzionamento
La valvola Alfa Laval Unique Mixproof è una valvola normalmente chiusa (NC) controllata da remoto tramite aria compressa.
Per separare i due liquidi, la valvola ha due sigilli per gli otturatori indipendenti. Lo spazio tra i due sigilli forma una camera di drenaggio atmosferica. Nel raro caso di fuoriuscita accidentale del prodotto, il prodotto scorre nella camera di drenaggio e viene scaricato attraverso una delle valvole di drenaggio.
Quando la valvola è aperta, la camera di drenaggio è chiusa. Il prodotto può quindi scorrere da una linea all'altra senza fuoriuscite. La valvola può essere facilmente pulita e protetta dagli effetti del colpo d'ariete in base ai requisiti di processo specifici e alla configurazione della valvola. (Non si verificano fuoriuscite di prodotto durante il funzionamento della valvola).
State-of-the-art horizontal mixproof valve
Based on the well proven and exceptionally versatile principle of the Unique Mixproof valves, this horizontal mixproof tank valve features many of the same components, such as the actuator, yoke and seals, and therefore the same spare parts. This provides the benefits of easy serviceability and low total cost of ownership.
Alfa Laval Unique Mixproof Horizontal Tank Valve, can be fitted with any level of sensing and control. It is as standard supplied with seat lift, which enables handling of two different products at the same time, or safe handling of one product while seat-lift cleaning operations are being conducted in the other portion of the valve – all without any risk of cross-contamination. The double tangential design of the valve body ensures full drainability, especially when the valve is mounted at the bottom of a flat-bottomed tank.
Video di assistenza e manutenzione a 360 °
Valvole Unique Mixproof di Alfa Laval - sostituzione delle guarnizioni a contatto con il prodotto
Valvole Alfa Laval Unique Mixproof - sostituire la guarnizione radiale
Valvole Alfa Laval Unique Mixproof - sostituire la guarnizione assiale
